.NETCore WebApi后端开发框架+达梦数据库测试报告

一、测试场景

.NETCore/.NET WebApi后端开发框架+达梦数据库V8
CSFrameworkV6.1旗舰版软件开发框架
Windows 10

二、运行 CSFramework.WebApi开发框架

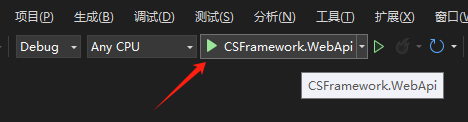

打开VS解决方案，按F5运行：

.NETCore WebApi后端开发框架+达梦数据库测试报告

CSFrameworkV6软件开发框架+达梦数据库（国产数据库）测试报告

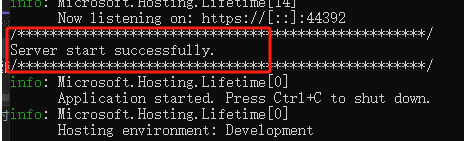

WebApi服务启动成功：

.NETCore WebApi后端开发框架+达梦数据库测试报告

三、测试连接WebApi服务器

使用SqlConnector工具连接达梦数据库，选择【WebApi服务器】后台连接方式，输入WebApi地址：https://localhost:44392

CSFrameworkV6软件开发框架+达梦数据库（国产数据库）测试报告

测试成功，点【保存配置】

WebApi服务接收到Api请求：api/SystemCommon/TestCornection

CSFrameworkV6软件开发框架+达梦数据库（国产数据库）测试报告

四、测试 CSFrameworkV6旗舰版软件开发框架+WebApi连接方式

前后端逻辑分离测试：

前端：CSFrameworkV6旗舰版
后端：CSFramework.WebApi V3

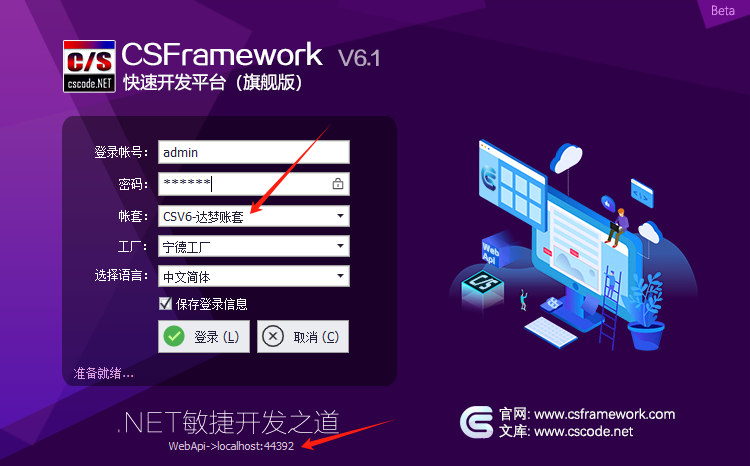

登录界面，选择【CSV6-达梦账套】

.NETCore WebApi后端开发框架+达梦数据库测试报告

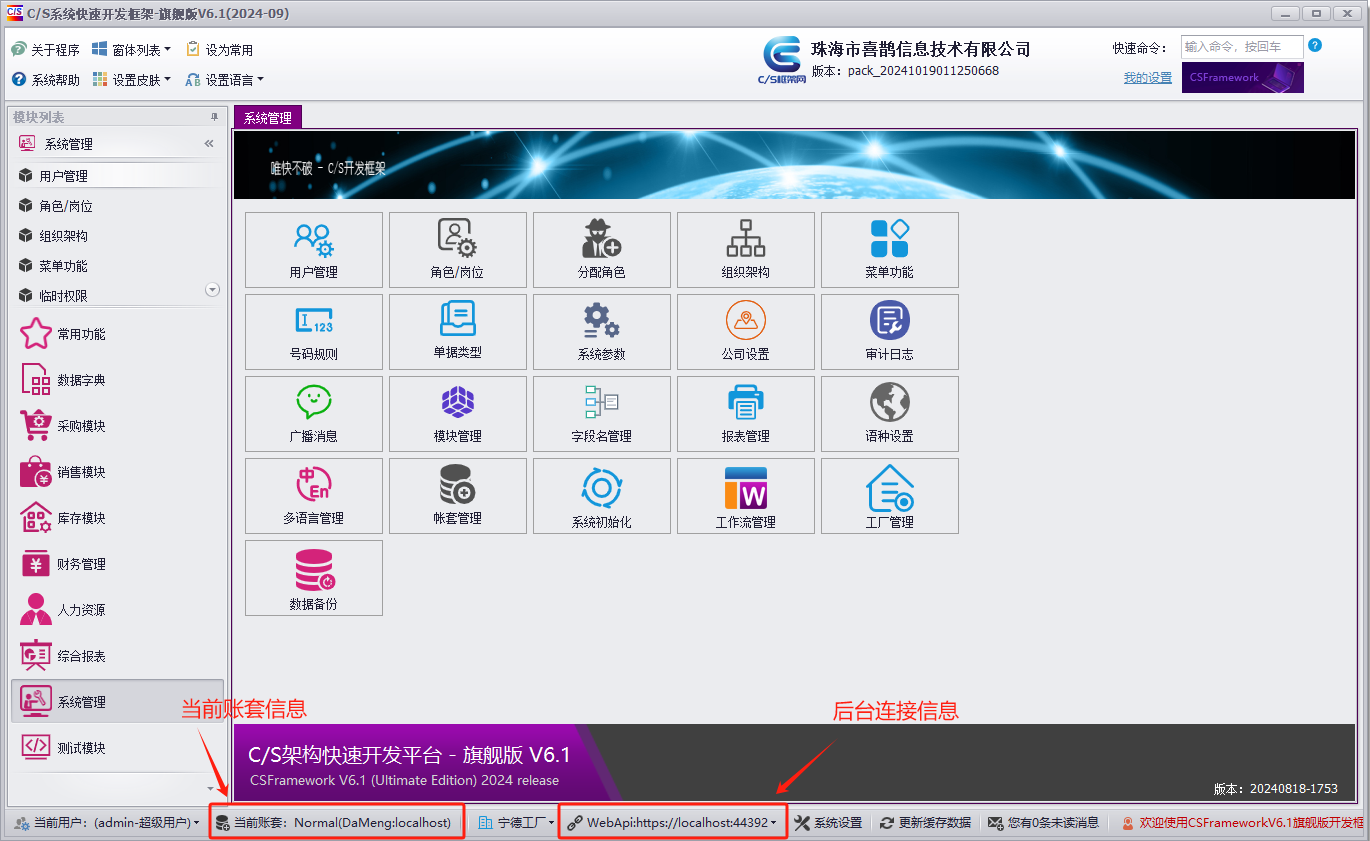

登录界面显示后台服务连接信息：WebApi->localhost:44392

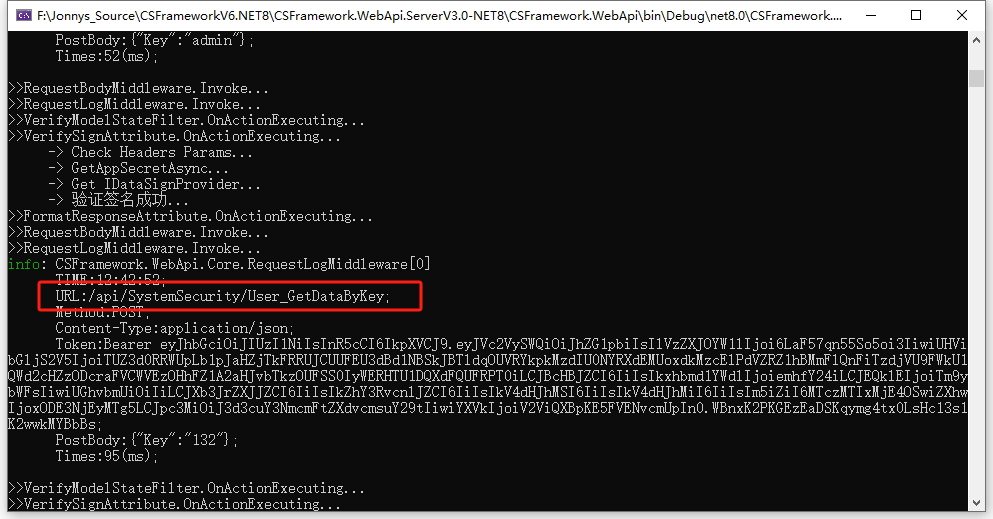

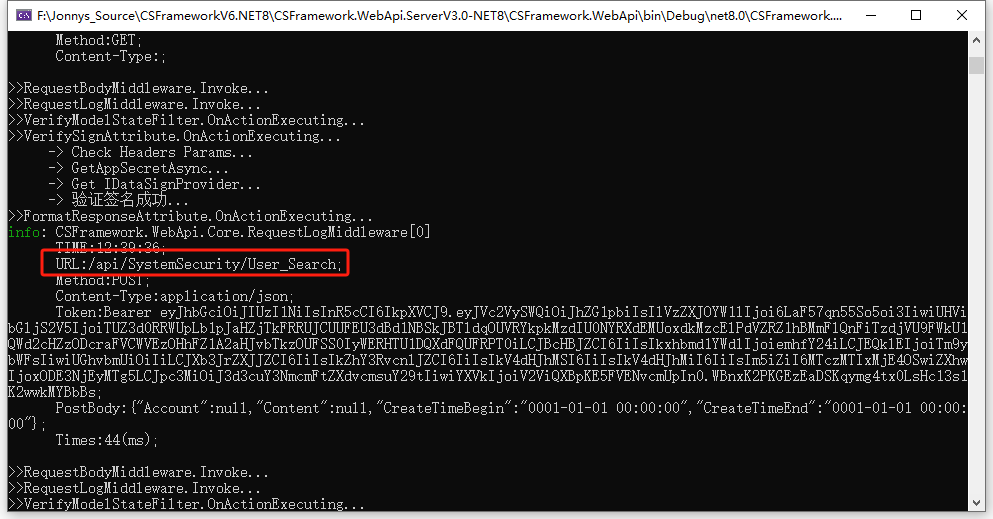

WebApi接口访问日志：

C# 全选

>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>VerifySignAttribute.OnActionExecuting...
     -> Check Headers Params...
     -> GetAppSecretAsync...
     -> Get IDataSignProvider...
     -> 验证签名成功...
>>FormatResponseAttribute.OnActionExecuting...
>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>VerifySignAttribute.OnActionExecuting...
     -> Check Headers Params...
     -> GetAppSecretAsync...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:12:17;
      URL:/api/SystemCommon/GetSystemSettings4Program;
      Method:POST;
      Content-Type:application/json;
      Token:;
      PostBody:{"Account":"","DataSetID":""};
      Times:2097(ms);

     -> Get IDataSignProvider...
     -> 验证签名成功...
>>FormatResponseAttribute.OnActionExecuting...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:12:19;
      URL:/api/sys_language/GetLanguageInit;
      Method:GET;
      Content-Type:;

>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>VerifySignAttribute.OnActionExecuting...
     -> Check Headers Params...
     -> GetAppSecretAsync...
     -> Get IDataSignProvider...
     -> 验证签名成功...
>>FormatResponseAttribute.OnActionExecuting...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:12:21;
      URL:/api/sys_language/GetLookupDataCulture;
      Method:GET;
      Content-Type:;

>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>VerifySignAttribute.OnActionExecuting...
     -> Check Headers Params...
     -> GetAppSecretAsync...
     -> Get IDataSignProvider...
     -> 验证签名成功...
>>FormatResponseAttribute.OnActionExecuting...
>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:12:21;
      URL:/api/SystemCommon/GetSystemDatasetByUser;
      Method:POST;
      Content-Type:application/json;
      Token:;
      PostBody:{"account":"admin","password":"Snj6+Q3dGGb1ukbEi0igFw=="};
      Times:100(ms);

>>VerifyModelStateFilter.OnActionExecuting...
>>FormatResponseAttribute.OnActionExecuting...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:12:21;
      URL:/api/tb_Factory/GetFactories4Login;
      Method:POST;
      Content-Type:application/json;
      Token:;
      PostBody:{"Account":"admin","Password":"Snj6+Q3dGGb1ukbEi0igFw=="};
      Times:381(ms);

>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>FormatResponseAttribute.OnActionExecuting...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:15:08;
      URL:/api/tb_Factory/GetFactories4Login;
      Method:POST;
      Content-Type:application/json;
      Token:;
      PostBody:{"Account":"admin","Password":"Snj6+Q3dGGb1ukbEi0igFw=="};
      Times:69(ms);

>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>FormatResponseAttribute.OnActionExecuting...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:15:13;
      URL:/api/tb_Factory/GetFactories4Login;
      Method:POST;
      Content-Type:application/json;
      Token:;
      PostBody:{"Account":"admin","Password":"Snj6+Q3dGGb1ukbEi0igFw=="};
      Times:30(ms);
>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
>>VerifyModelStateFilter.OnActionExecuting...
>>FormatResponseAttribute.OnActionExecuting...
>>RequestBodyMiddleware.Invoke...
>>RequestLogMiddleware.Invoke...
info: CSFramework.WebApi.Core.RequestLogMiddleware[0]
      TIME:12:16:28;
      URL:/api/gate/login;
      Method:POST;
      Content-Type:application/json;
      Token:;
      PostBody:{"validationTicket":"#ZuBaSz+G$*FGs2+a/z3aDd3aGqo0F34f160$^","LoginUser":{"Account":"admin","UserName":null,"Password":"Snj6+Q3dGGb1ukbEi0igFw==","DBID":"Normal","DBName":"CSFrameworkV6_Normal","FactoryId":"C01","IP":"192.168.0.105","MAC":"502B73D50444","Token":null,"LoginAuthType":"LocalSystemAuth","Org1":null,"Org2":null,"Tag":null,"ClientVersion":null,"DeviceMID":null,"DeviceType":null,"DatasetIDs":null,"FactoryIDs":null,"FlagAdmin":null,"Roles":null},"Language":"zh_cn","PublicKey":"MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBANWj9EQbJd37HSCXEwD1J1vC3pIOuVQgXA2aeBqbO7cUOEZE5Agvpvs87+hUBYQ38xEgP6hrom939ARKB2XDGMMCAwEAAQ==","AppId":null};
      Times:619(ms);
