CSFrameworkV6旗舰版 - 基础资料窗体改装主从子表（多级明细表）解决方案

一、前言

本文将介绍由单表基础资料窗体改装为主从表窗体的解决方案。

单表基础资料窗体继承 frmBaseDataDictionary 基类窗体。

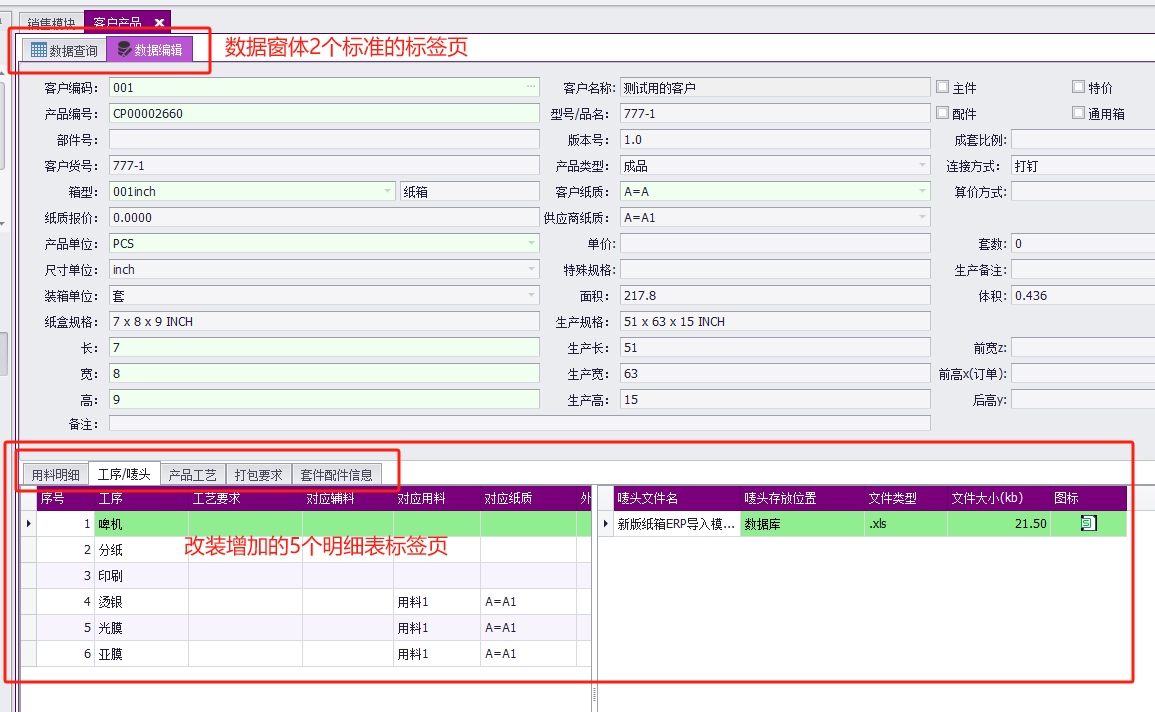

二、参考界面（改装后）

CSFrameworkV6旗舰版 - 基础资料窗体改装主从子表（多级明细表）解决方案

三、改装过程

3.1 数据编辑页增加明细表标签页及相关组件

增加 TabControl / TabPage页签组件、GridControl表格组件。

3.2 绑定【数据编辑】页面所有文本框及明细表的数据源

修改 DoBindingSummaryEditor 方法，绑定文本框数据源以及明细表格的数据源，参考代码：

C# 全选

        protected override void DoBindingSummaryEditor(object summary)
        {
            this.DoBindingEditorPanel(pcDetailEditor, summary);
            this.DoBindingEditorPanel(layoutControl1, summary);

            //获取所有明细表数据
            var productCode = _BLL.DataBinder.ProductCode;
            if (this.IsAddMode) productCode = "--";
            var list = _BLL.GetDetails(productCode);

            //绑定表格的数据源
            gcProductMaterials.DataSource = list.ProductMaterialsList;//用料明细
            gcProductCraft.DataSource = list.ProductCraftList;//工序/唛头
            gcProductPacking.DataSource = list.ProductPackingList;//打包要求
            gcProductProcess.DataSource = list.ProductProcessList;//产品工艺
            gcSub.DataSource = list.ProductSubInfoList;//套件、配件信息
            gcAttachFile.DataSource = list.ProductLogoFilesList;//唛头文件
        }

3.3 DAL层实现 GetDetails 方法，获取所有明细表数据

C# 全选

        /// <summary>
        /// 获取客户产品所有明细表数据
        /// </summary>
        /// <param name="productCode">产品编码</param>
        /// <returns></returns>
        public ProductUpdateModel GetDetails(string productCode)
        {
            //获取所有明细表
            var q_ProductMaterials = _Database.GetQueryable<dt_CustomerProductMaterials>().Where(w => w.ProductCode == productCode);
            var q_ProductCraft = _Database.GetQueryable<dt_CustomerProductCraft>().Where(w => w.ProductCode == productCode);
            var q_ProductPacking = _Database.GetQueryable<dt_CustomerProductPacking>().Where(w => w.ProductCode == productCode);
            var q_ProductProcess = _Database.GetQueryable<dt_CustomerProductProcess>().Where(w => w.ProductCode == productCode);
            var q_ProductLogoFiles = _Database.GetQueryable<tb_AttachFile>().Where(w => w.DocType == "Carton" && w.DocID == productCode);

            //省略代码......

            return new ProductUpdateModel
            {
                ProductMaterialsList = q_ProductMaterials.ToList(),
                ProductCraftList = q_ProductCraft.ToList(),
                ProductPackingList = q_ProductPacking.ToList(),
                ProductProcessList = q_ProductProcess.ToList(),
                ProductLogoFilesList = q_ProductLogoFiles.ToList(),
                ProductSubInfoList = listProductSubInfo.ToList(),
            };
        }

3.4 DAL层重写 Delete 方法，删除主表及所有明细表数据

C# 全选

 public override bool Delete(string keyValue)
 {
     try
     {
         _Database.BeginTransaction();

         var master = _Database.GetQueryable<dt_CustomerProduct>().Where(w => w.isid == keyValue).FirstOrDefault();

         var exists = false;

         exists = _Database.GetQueryable<tb_Inventory_Cartons>().Any(a => a.ProductCode == master.ProductCode);
         if (exists) throw new CustomException("成品库存表已使用该产品，不可删除！");

         exists = _Database.GetQueryable<tb_IN_Cartons>().Any(a => a.ProductCode == master.ProductCode);
         if (exists) throw new CustomException("成品入库单已使用该产品，不可删除！");

         exists = _Database.GetQueryable<tb_DO_Cartons>().Any(a => a.ProductCode == master.ProductCode);
         if (exists) throw new CustomException("成品送货单已使用该产品，不可删除！");

         var detailA = _Database.GetQueryable<dt_CustomerProductMaterials>().Where(w => w.ProductCode == master.ProductCode).ToList();
         var detailB = _Database.GetQueryable<dt_CustomerProductCraft>().Where(w => w.ProductCode == master.ProductCode).ToList();
         var detailC = _Database.GetQueryable<dt_CustomerProductPacking>().Where(w => w.ProductCode == master.ProductCode).ToList();
         var detailD = _Database.GetQueryable<dt_CustomerProductProcess>().Where(w => w.ProductCode == master.ProductCode).ToList();
         var detailF = _Database.GetQueryable<tb_AttachFile>().Where(w => w.DocType == "Carton" && w.DocID == master.ProductCode).ToList();

         int count = 0;

         count += _Database.Remove<dt_CustomerProduct>(master); //删除主表
         count += _Database.Remove<dt_CustomerProductMaterials>(detailA);
         count += _Database.Remove<dt_CustomerProductCraft>(detailB);
         count += _Database.Remove<dt_CustomerProductPacking>(detailC);
         count += _Database.Remove<dt_CustomerProductProcess>(detailD);
         count += _Database.Remove<tb_AttachFile>(detailF);

         _Database.CommitTransaction();

         //保存被删除的数据
         if (count > 0)
             _Log.Log(DataLogType.delete, "Product删除成功:", nameof(dt_CustomerProduct), master.ProductCode, _Loginer.Account, master);

         return count > 0;
     }
     catch (Exception e)
     {
         _Database.RollbackTransaction();
         throw;
     }
 }

3.5 界面层重写 DoSave 方法，重写【保存】按钮事件

C# 全选

public override void DoSave(IButtonInfo sender)
{
    try
    {
        frmWaitingEx.ShowMe(this);
        this.UpdateLastControl(); //更新最后一个输入控件的数据源
        if (!ValidatingData()) return; //检查资料完整性

        //明细表数据
        var listProductMaterials = gcProductMaterials.GetDataSource<dt_CustomerProductMaterials>();
        var listProductCraft = gcProductCraft.GetDataSource<dt_CustomerProductCraft>();
        var listProductPacking = gcProductPacking.GetDataSource<dt_CustomerProductPacking>();
        var listProductProcess = gcProductProcess.GetDataSource<dt_CustomerProductProcess>();
        var listProductLogoFiles = gcAttachFile.GetDataSource<tb_AttachFile>();

        //调用BLL层接口保存数据
        bool result = _BLL.Update(_UpdateType,
            listProductMaterials,
            listProductCraft,
            listProductPacking,
            listProductProcess,
            listProductLogoFiles);

        if (result)
        {
            var dt = _BLL.GetDataByKey(_BLL.DataBinder.isid);//获取最新数据
            this.UpdateSummaryRow(dt); //刷新表格当前记录
            this.DoBindingSummaryEditor(dt);
            this.DoSave_ResetState();//保存成功后要设置各种状态，调用基类通用逻辑
            this.NotifyDataDictChanged<dt_CustomerProduct>();
        }
        else
        {
            Msg.Warning("保存失败!");
        }
    }
    finally
    {
        frmWaitingEx.HideMe(this);
    }
}

3.6 BLL 层重载Update 方法，用于保存数据

C# 全选

        public virtual bool Update(UpdateType type,
            List<dt_CustomerProductMaterials> listProductMaterials,
            List<dt_CustomerProductCraft> listProductCraft,
            List<dt_CustomerProductPacking> listProductPacking,
            List<dt_CustomerProductProcess> listProductProcess,
            List<tb_AttachFile> listProductLogoFiles)
        {
            //更新公共字段的数据
            SetDetailCommonValue(_DataBinder);

            var data = CreateSaveData(type, _DataBinder);

            var input = new ProductUpdateModel
            {
                MasterDataUpdate = data,
                ProductCraftList = listProductCraft,
                ProductMaterialsList = listProductMaterials,
                ProductPackingList = listProductPacking,
                ProductProcessList = listProductProcess,
                ProductLogoFilesList = listProductLogoFiles,
            };

            return _Bridge.Update(input);
        }

3.7 DAL层重载 Update 方法，用于保存数据

C# 全选

 public bool Update(ProductUpdateModel input)
 {
     try
     {
         _Database.BeginTransaction();

         //新增客户产品，自动生成产品序号
         if (input.MasterDataUpdate.listAdded.Count > 0)
         {
             var sn= DocNoHelper.GetDataSN(_Database, "CP", true, 8, "", _Loginer.Account);//生成客户产品编码
             input.MasterDataUpdate.listAdded.First().ProductCode = sn;
         }

         //提交主表
         base.Update(input.MasterDataUpdate, _Database, false);

         //获取产品编码，作为所有明细表的外键值
         var ProductCode = input.MasterDataUpdate.VisibleList.First().ProductCode;

         #region 提交明细表：产品物料

         SetCommonValue<dt_CustomerProductMaterials>(input.ProductMaterialsList);

         if (input.ProductMaterialsList != null)
         {
             foreach (var v in input.ProductMaterialsList)
             {
                 //新增记录，设置默认值
                 if (v.isid.IsEmpty()) v.isid = IdHelper.GetId();
                 if (v.ProductCode.IsEmpty()) v.ProductCode = ProductCode;
             }

             //删除旧数据
             _Database.Remove<dt_CustomerProductMaterials>(w => w.ProductCode == ProductCode);

             //保存数据
             _Database.Add(input.ProductMaterialsList);
         }

         #endregion

         #region 提交明细表：产品工艺

         SetCommonValue<dt_CustomerProductCraft>(input.ProductCraftList);

         if (input.ProductCraftList != null)
         {
             foreach (var v in input.ProductCraftList)
             {
                 //新增记录，设置默认值
                 if (v.isid.IsEmpty()) v.isid = IdHelper.GetId();
                 if (v.ProductCode.IsEmpty()) v.ProductCode = ProductCode;
             }

             //删除旧数据
             _Database.Remove<dt_CustomerProductCraft>(w => w.ProductCode == ProductCode);

             //保存数据
             _Database.Add(input.ProductCraftList);
         }

         #endregion

         #region 提交明细表：打包要求

         SetCommonValue<dt_CustomerProductPacking>(input.ProductPackingList);

         if (input.ProductPackingList != null)
         {
             foreach (var v in input.ProductPackingList)
             {
                 //新增记录，设置默认值
                 if (v.isid.IsEmpty()) v.isid = IdHelper.GetId();
                 if (v.ProductCode.IsEmpty()) v.ProductCode = ProductCode;
             }

             //删除旧数据
             _Database.Remove<dt_CustomerProductPacking>(w => w.ProductCode == ProductCode);

             //保存数据
             _Database.Add(input.ProductPackingList);
         }

         #endregion

         #region 提交明细表：产品工序

         SetCommonValue<dt_CustomerProductProcess>(input.ProductProcessList);

         if (input.ProductProcessList != null)
         {
             foreach (var v in input.ProductProcessList)
             {
                 //新增记录，设置默认值
                 if (v.isid.IsEmpty()) v.isid = IdHelper.GetId();
                 if (v.ProductCode.IsEmpty()) v.ProductCode = ProductCode;
             }

             //删除旧数据
             _Database.Remove<dt_CustomerProductProcess>(w => w.ProductCode == ProductCode);

             //保存数据
             _Database.Add(input.ProductProcessList);
         }

         #endregion

         #region 提交明细表：唛头文件

         if (input.ProductLogoFilesList != null)
         {
             foreach (var v in input.ProductLogoFilesList)
             {
                 //新增记录，设置默认值
                 if (v.FileID.IsEmpty())
                 {
                     v.FileID = IdHelper.GetId();
                     v.DocID = ProductCode;
                     v.DocType = "Carton";
                 }
             }

             //删除旧数据
             _Database.Remove<tb_AttachFile>(w => w.DocType == "Carton" && w.DocID == ProductCode);

             //保存数据
             _Database.Add(input.ProductLogoFilesList);
         }

         #endregion

         _Database.CommitTransaction();

         return true;
     }
     catch (System.Exception)
     {
         _Database.RollbackTransaction();
         throw;
     }
 }

3.8 提交的数据模型 ProductUpdateModel

C# 全选

    /// <summary>
    /// 客户产品资料-保存数据模型
    /// </summary>
    public class ProductUpdateModel
    {
        //主表数据
        public MasterDataUpdate<dt_CustomerProduct> MasterDataUpdate { get; set; }

        //明细表数据
        public List<dt_CustomerProductMaterials> ProductMaterialsList { get; set; }
        public List<dt_CustomerProductCraft> ProductCraftList { get; set; }
        public List<dt_CustomerProductPacking> ProductPackingList { get; set; }
        public List<dt_CustomerProductProcess> ProductProcessList { get; set; }
        public List<tb_AttachFile> ProductLogoFilesList { get; set; }
        public List<res_SOs> ProductSubInfoList { get; set; }
    }
